OVERVIEWUpgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.BenefitsRemotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control. Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs. Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

This specification defines the electrical and mechanical characteristics and requirements for a continuous-duty, single-phase, maintenance bypass / power output distribution system. This system, hereafter referred to as the POD, provides high-quality maintenance by pass capability for all micro UPS products up to and including 3kVA.

OVERVIEWUpgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.BenefitsRemotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control. Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs. Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

The Vertiv Geist Monitored Rack PDU VP8853 is a 32A,230V, 0U vertical rack power distribution unit (PDU) with input power monitoring. The VP8853 has (36) IEC C13 and (6) IEC C19 outlets, and a 1P+N+E (IP44) plug providing 7.3kW in power capacity. This Monitored Data Center rPDU provides you quick access to critical power usage information so you can evaluate energy usage trends and maximize uptime. The hot-swappable Interchangeable Monitoring Device displays current on the local LED display. Visible Light Communication technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.

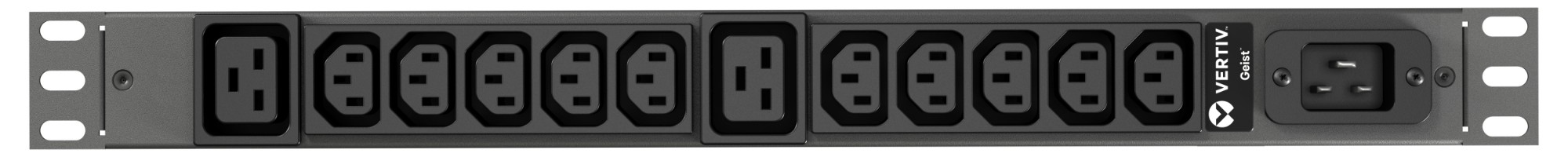

The Vertiv Geist Basic Rack PDU VP9559 is a 16A, 230V, rack power distribution unit (PDU). It has 10 IEC C13, 2 IEC C19 outlets, and a C20 input that provides 3.6kW power in capacity. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.

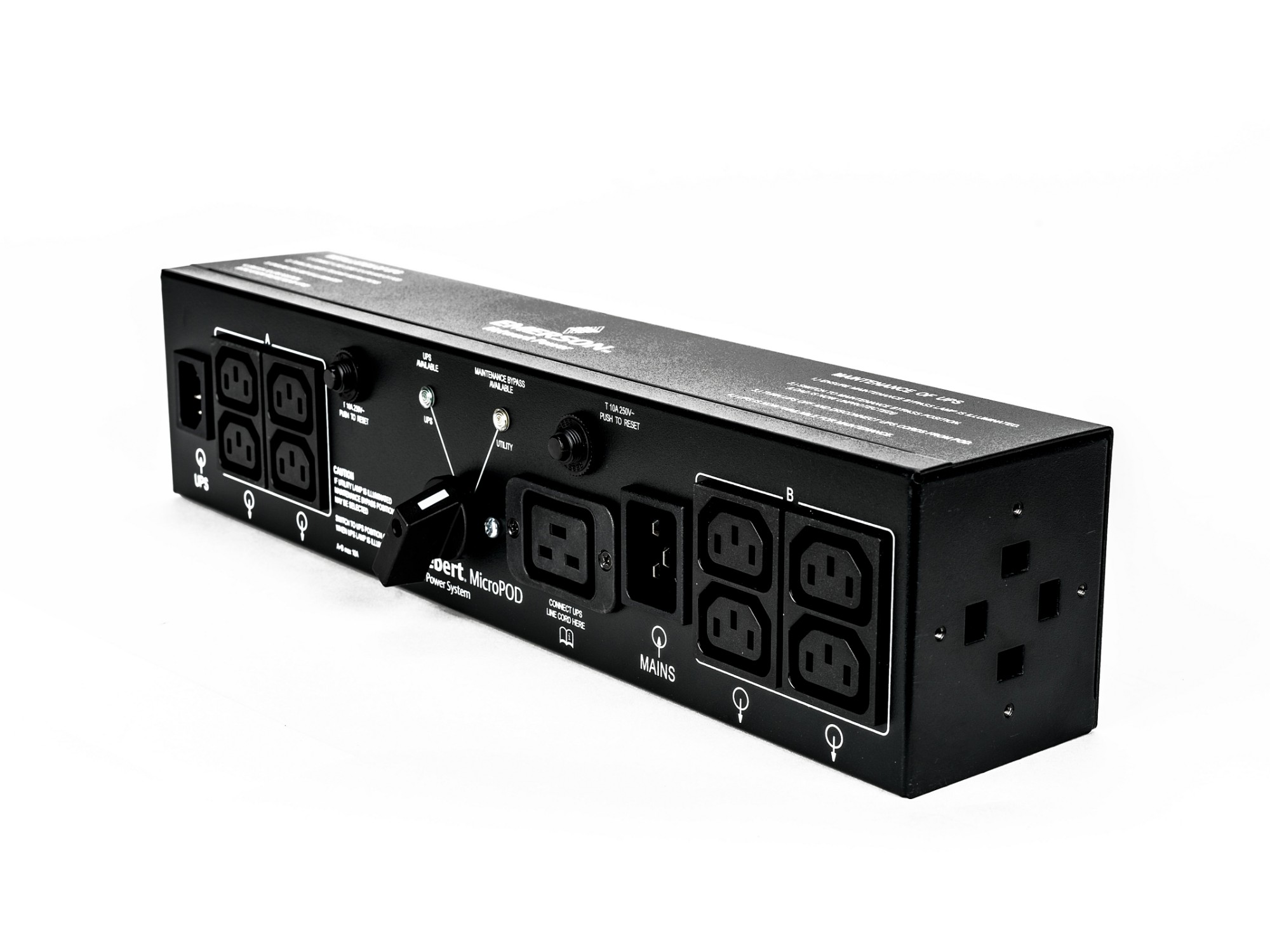

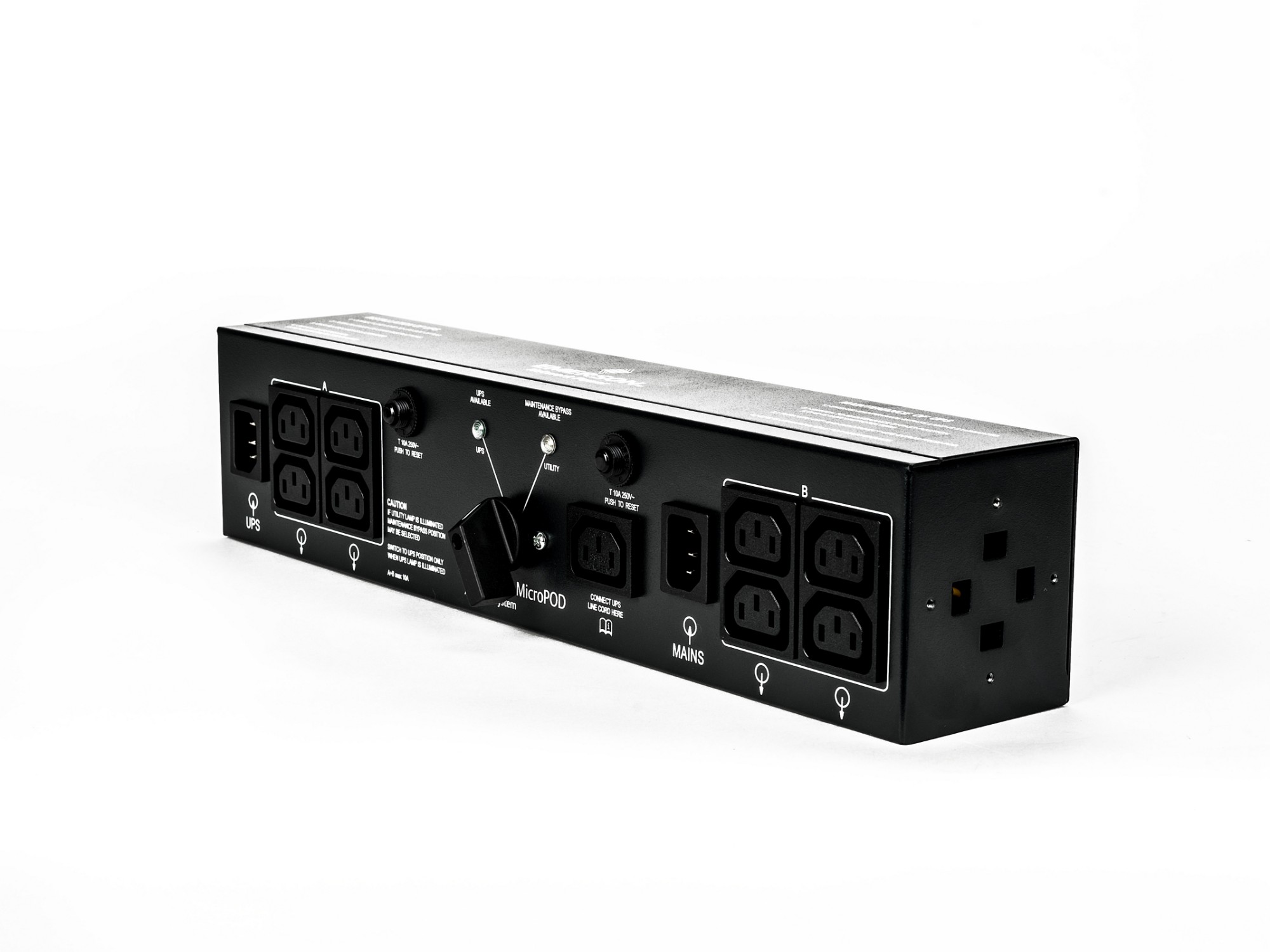

The Liebert MicroPOD maintenance bypass and power output distribution switch allows you to manually transfer the connected equipment to utility power via a maintenance bypass switch,permitting scheduled maintenance or UPS replacement without discontinuing power to the critical load. Transferring back to UPS power is just as easy — simply turn the switch to the indicatedposition and the load is protected by the UPS. Available in plug-andplay or hardwired options at 120V or 208V rating, units include brackets for rack mounting in any direction.

The Vertiv Geist Monitored Rack PDU VP8858 is a 16A, 230V, 0U vertical rack power distribution unit (PDU) with input power monitoring. The VP8858 has (18) IEC C13 and (2) IEC C19 outlets, and a C20 plug providing 3.6kW in power capacity. This Monitored Data Center rPDU provides you quick access to critical power usage information so you can evaluate energy usage trends and maximize uptime. The hot-swappable Interchangeable Monitoring Device displays current on the local LED display. Visible Light Communication technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.

Upgradeable Metered rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet while delivering a view of real-time view of power usage from a local LED display.

The Vertiv Geist Basic Rack PDU VP7552 is a 16A, 230V, 0U vertical rack power distribution unit (PDU). It has 20 IEC C13, 4 IEC C19 outlets, and an IEC 60320 C20 power inlet. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.

The Vertiv Geist Basic Rack PDU VP7553 is a 32A, 230V, 0U vertical rack power distribution unit (PDU). It has 20 IEC C13, 4 IEC C19 outlets, and a 1P+N+E (IP44) input that provides 7.3kW capacity. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
