Showing 0–9 of 9 results

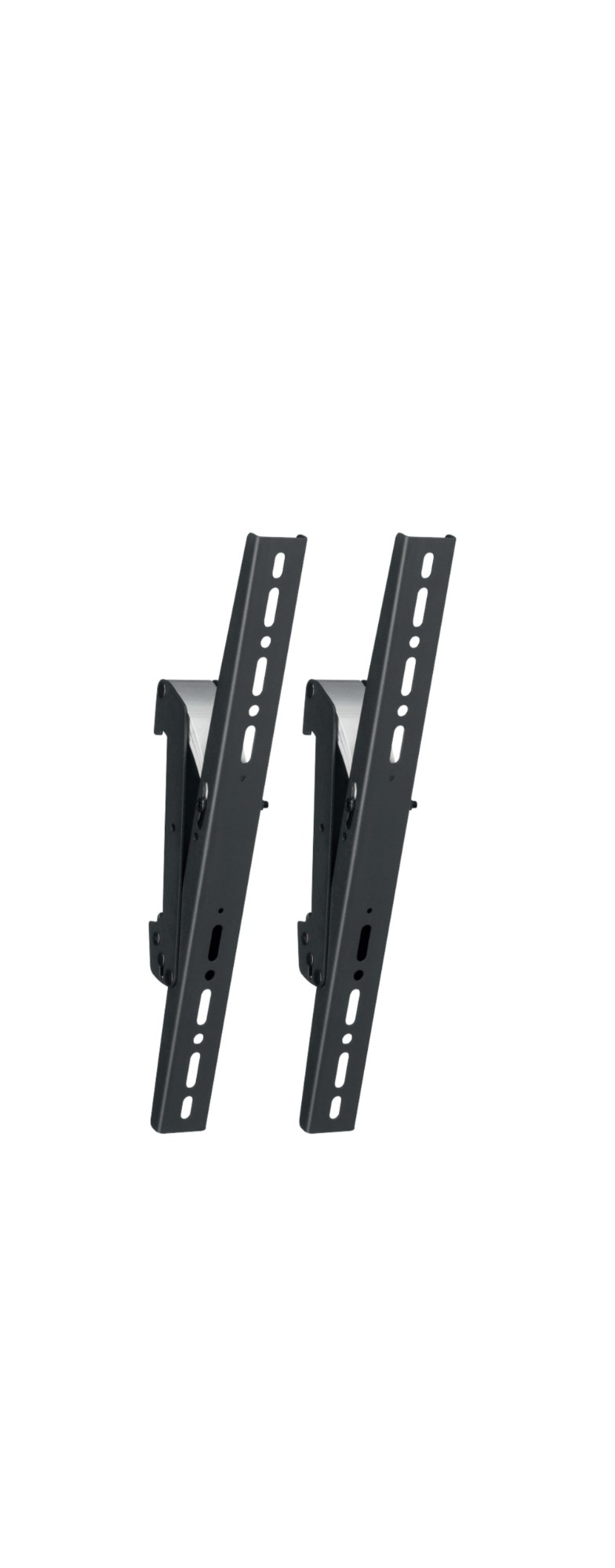

The PFS 3306 interface display strips are a part of the modular Connect-it system with which you can create your own ceiling solution for medium- to large-sized displays. The PFS 3306 is suitable for medium- to large-sized displays up to 80 kg with a max. vertical fitment of 600 mm. Combine these interface display strips with one of the Connect-it ceiling plates (PUC 1060/ 1070/ 1080/ 1090), a Connect-it pole (PUC 2508/ 2515/ 2530) and a Connect-it interface bar (PFB 3405/ 3407/ 3409/ 3411) for a complete ceiling solution.

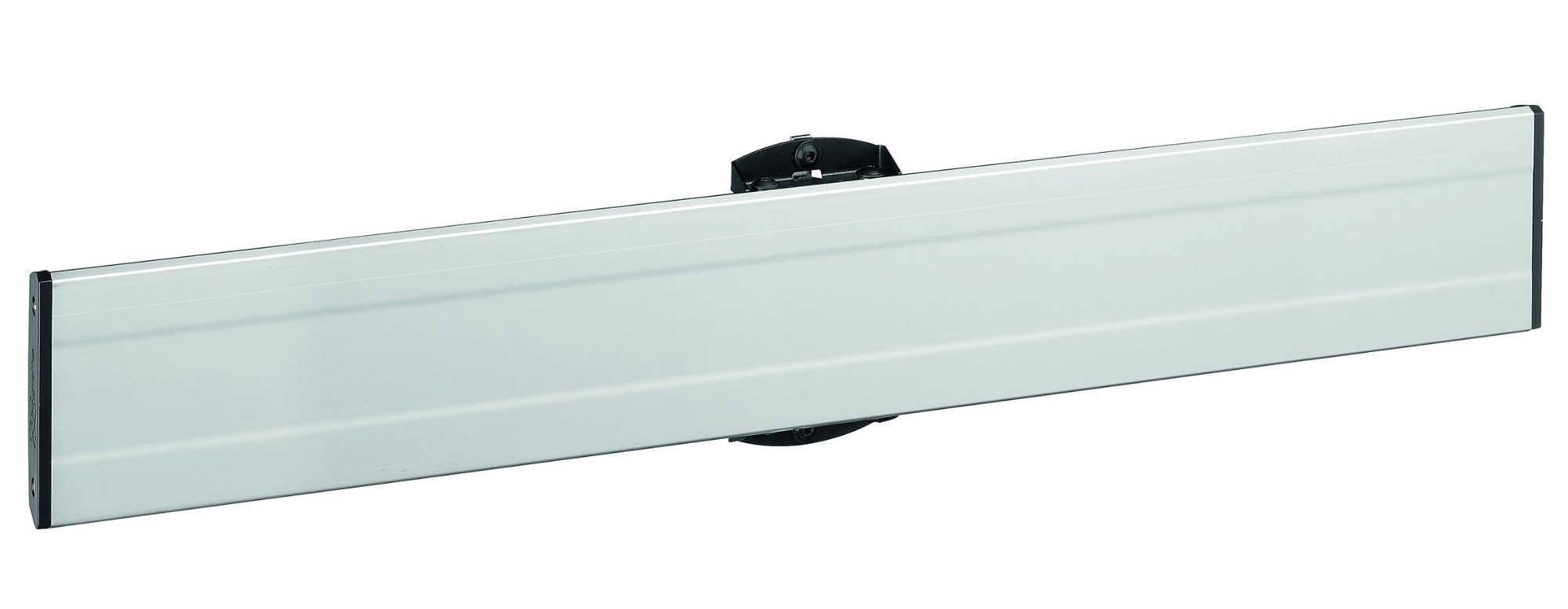

The PFB 3409 interface bar is a part of the modular Connect-it system with which you can create your own ceiling solution for medium- to large-sized displays. The PFB 3409 is suitable for medium- to large-sized displays up to 80 kg with a max. horizontal fitment of 850 mm. Combine this interface bar with one of the Connect-it ceiling plates (PUC 1060/ 1070/ 1080/ 1090), a Connect-it pole (PUC 2508/ 2515/ 2530) and Connect-it interface display strips (PFS 3303/ 3304/ 3305/ 3306/ 3308/ 3311) for a complete ceiling solution.

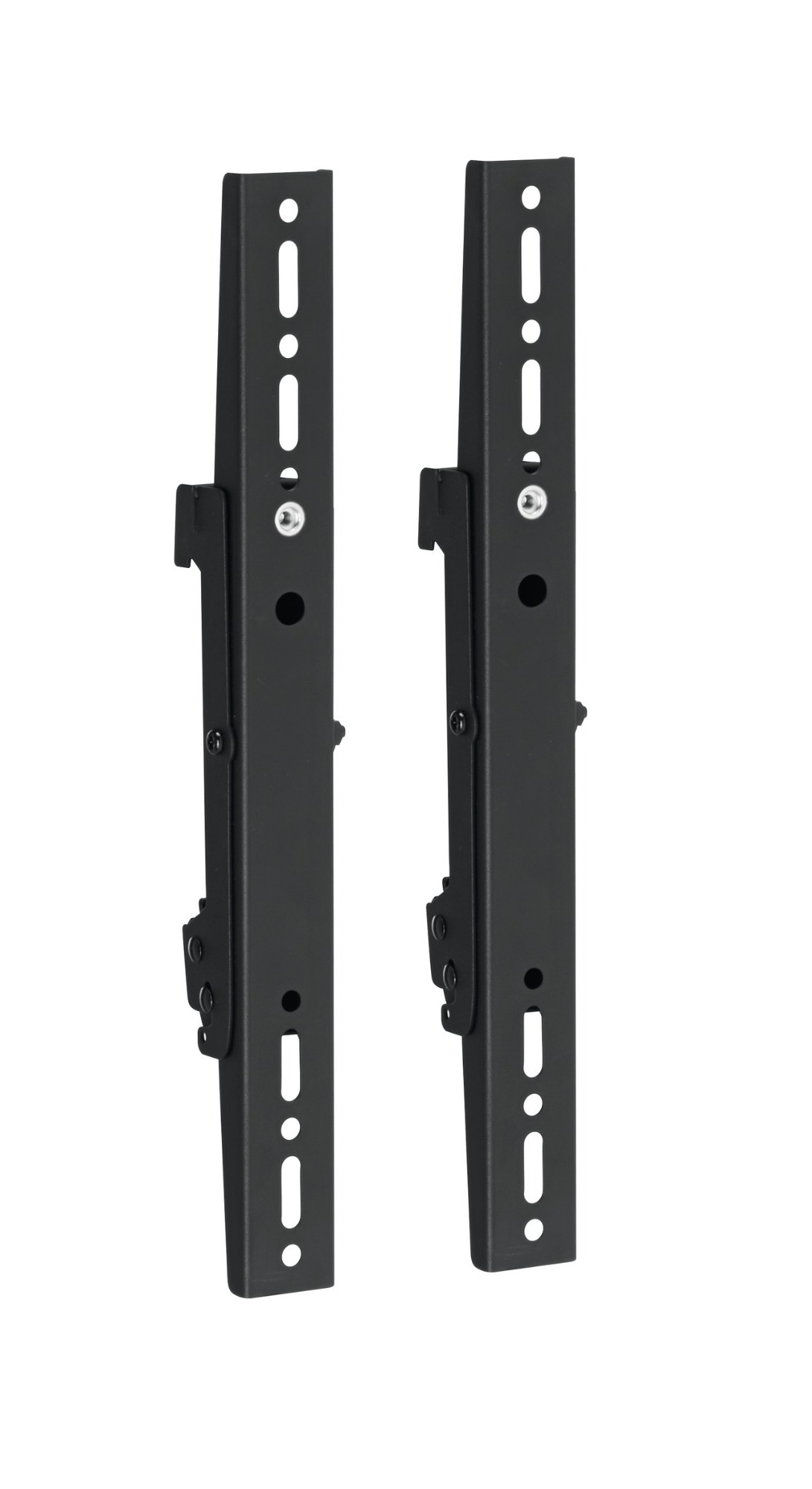

The PFS 3204 Interface display strips are a part of the modular Connect-it system with which you can create your own display mounting solution. The PFS 3204 is suitable for displays up to 160 kg with a maximum vertical fitment of 400mm. Features of these strips are: tilt leveling and unlock straps (for wall mounting). These strips must be combined with PFB 34xx Connect-it interface bars.

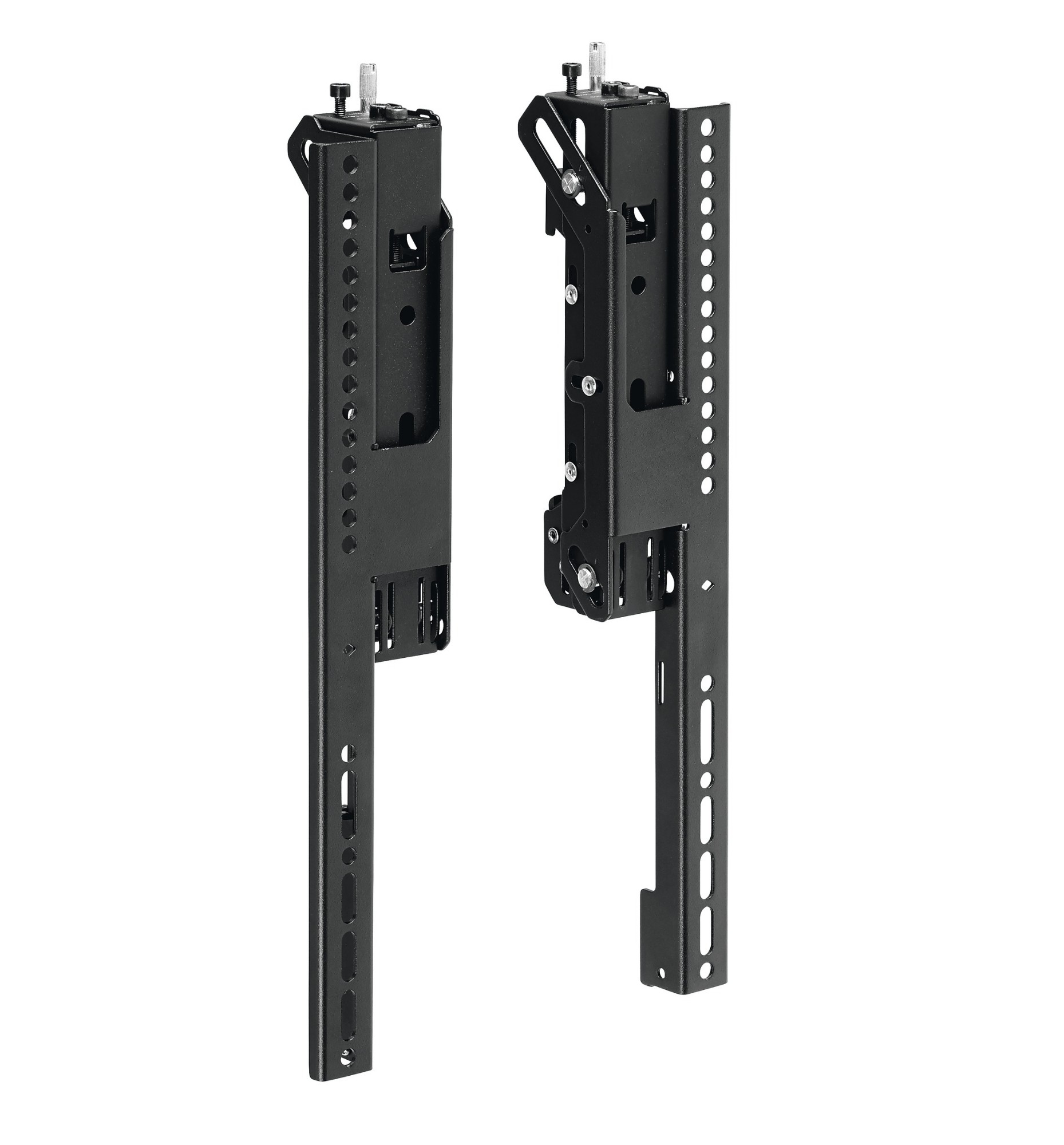

The PFS 3504 adjustable display strip is part of a unique and flexible system that is ideal for video wall setups and in-line menu boards. With this modular concept, based on Connect-it, you create a video wall solution for almost every set-up requirement. The video wall solution consists of interface bars (PFB 34xx) and one set of multi directional (3D) adjustable interface display strips (PFS 35xx) per display. Vogel’s offers various lengths of interface bars and two different lengths of interface display strips, with fitment 400 mm and 800 mm. The PFS 3504 is a unique top adjustable display strip, which can be adjusted in 3 directions (3D) to achieve an overall seamless and flawless look. The PFS 3504 has a vertical fitment of 400 mm and has horizontal, depth and tilt adjustment. Once the displays are in place, the built in service position makes it possible to easily connect cables to the displays. The service position also allows each individual display to be removed for maintenance or replacement. Even if the display in the middle of the video wall. Additional features include the lock for lateral shift to avoid horizontal movement. With the optional padlock (PFA 9109) you prevent unauthorized removal.

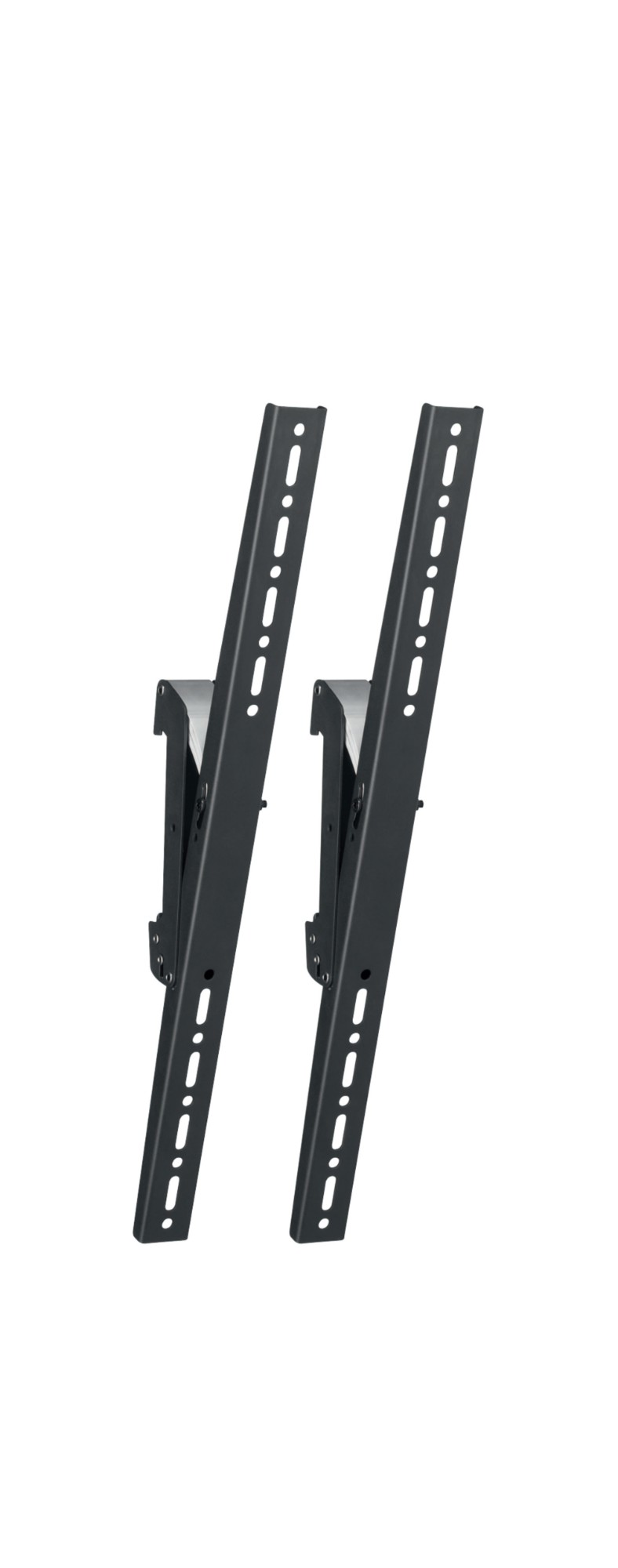

The PFS 3304 interface display strips are a part of the modular Connect-it system with which you can create your own ceiling solution for medium- to large-sized displays. The PFS 3304 is suitable for medium- to large-sized displays up to 80 kg with a max. vertical fitment of 420 mm. Combine these interface display strips with one of the Connect-it ceiling plates (PUC 1060/ 1070/ 1080/ 1090), a Connect-it pole (PUC 2508/ 2515/ 2530) and a Connect-it interface bar (PFB 3405/ 3407/ 3409/ 3411) for a complete ceiling solution.

The PFB 3409 interface bar is a part of the modular Connect-it system with which you can create your own ceiling solution for medium- to large-sized displays. The PFB 3409 is suitable for medium- to large-sized displays up to 80 kg with a max. horizontal fitment of 850 mm. Combine this interface bar with one of the Connect-it ceiling plates (PUC 1060/ 1070/ 1080/ 1090), a Connect-it pole (PUC 2508/ 2515/ 2530) and Connect-it interface display strips (PFS 3303/ 3304/ 3305/ 3306/ 3308/ 3311) for a complete ceiling solution.

The PFB 3407 interface bar is a part of the modular Connect-it system with which you can create your own ceiling solution for medium- to large-sized displays. The PFB 3407 is suitable for medium- to large-sized displays up to 80 kg with a max. horizontal fitment of 650 mm. Combine this interface bar with one of the Connect-it ceiling plates (PUC 1060/ 1070/ 1080/ 1090), a Connect-it pole (PUC 2508/ 2515/ 2530) and Connect-it interface display strips (PFS 3303/ 3304/ 3305/ 3306/ 3308/ 3311) for a complete ceiling solution.

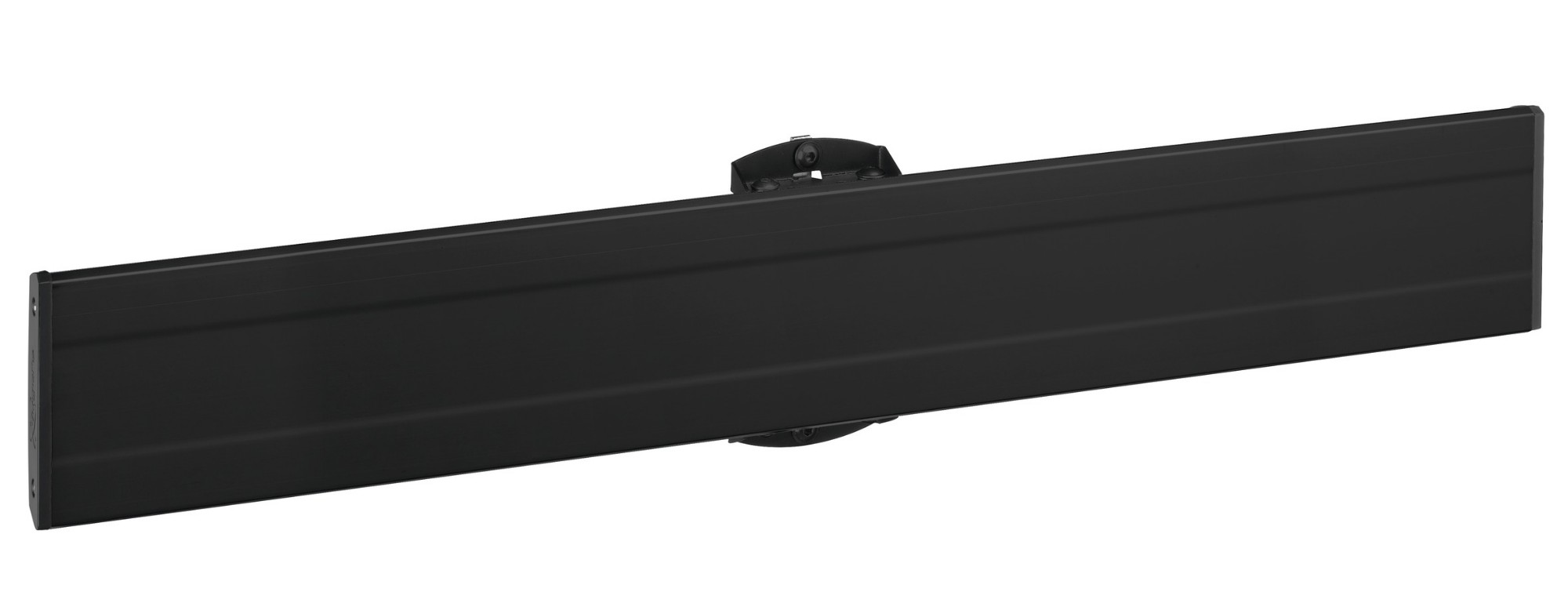

The PFB 3419 interface bar is part of a unique and flexible system that is ideal for video wall setups and in-line menuboarding. With this modular concept, based on Connect-it, you can create a video wall solution for almost every set-up requirement. The video wall consists of interface bars (PFB 34xx) and one set of multi directional (3D) adjustable interface display strips (PFS 35xx) per display. Vogel’s offers 3 different lengths of interface bars varying from 1900 to 3300 mm and two different interface display strips with VESA 400 mm and 800 mm. The PFB 3419 interface bar is a part of the modular Connect-it system which can be used for ceiling, floor and wall mounting. The PFB 3419 with a length of 1900 mm is ideal for mounting multiple displays. The PFB 3419 can be used in combination with other interface bars of the PFB 34xx series by using the interface bar coupler (PFA 9104). The advantage of the modularity is that you create almost any desirable length without cutting.

PTA 3103 is a table or wall mount designed to be used in combination with the Vogel's PTS secure tablet enclosures (TabLock). The TabLock is secured to the mount with screws inside the TabLock. The tilt angle is fixed. The mount can be used for both wall and table mounting.
