The QSFP-40G-CSR-S is a pluggable optical transceiver with a duplex LC connector interface used for connectivity using MultiMode Fiber (MMF). The Cisco 40GBASE-CSR Modules support link lengths of 300 meters and 400 meters, respectively, on laser-optimized OM3 and OM4 multimode fibers. Customers benefit through the reuse of their existing 10 gigabit duplex MMF infrastructure as they migrate to 40 Gigabit Ethernet, while maintaining the same supported link distances as 10G Ethernet. Each QSFP-40G-CSR-S operates at four different wavelengths. Each of the four wavelengths operates at 10G over existing duplex multimode fiber using standard LC connectors. The Cisco QSFP-40G-CSR-S transceiver does not support FCoE.

Fan Module – Port-side intake (burgundy)

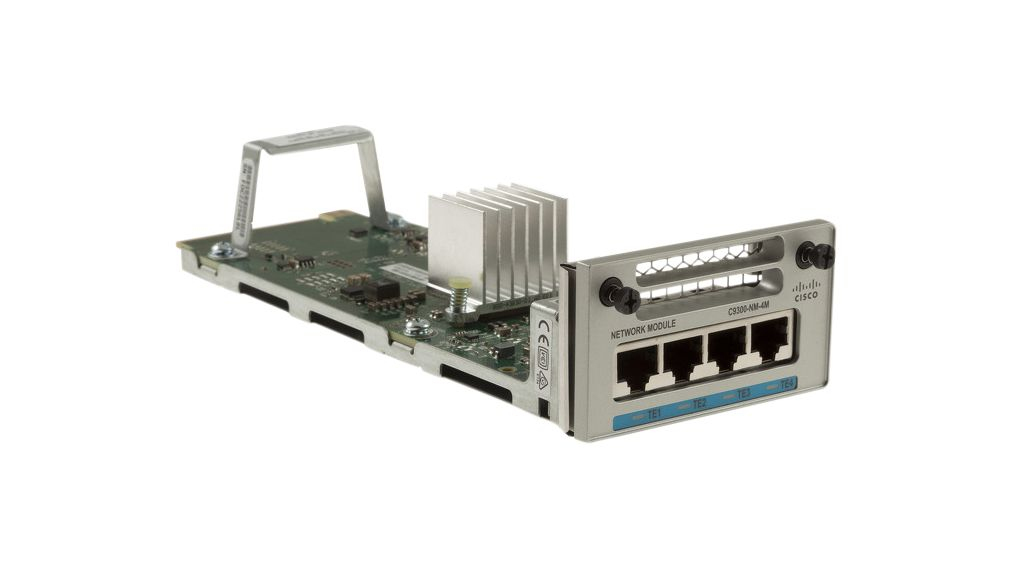

The Cisco Catalyst 9500 Series Switches support optional network modules for uplink ports only on the 40-port 10 Gigabit Ethernet switch. The default switch configuration does not include the network module.

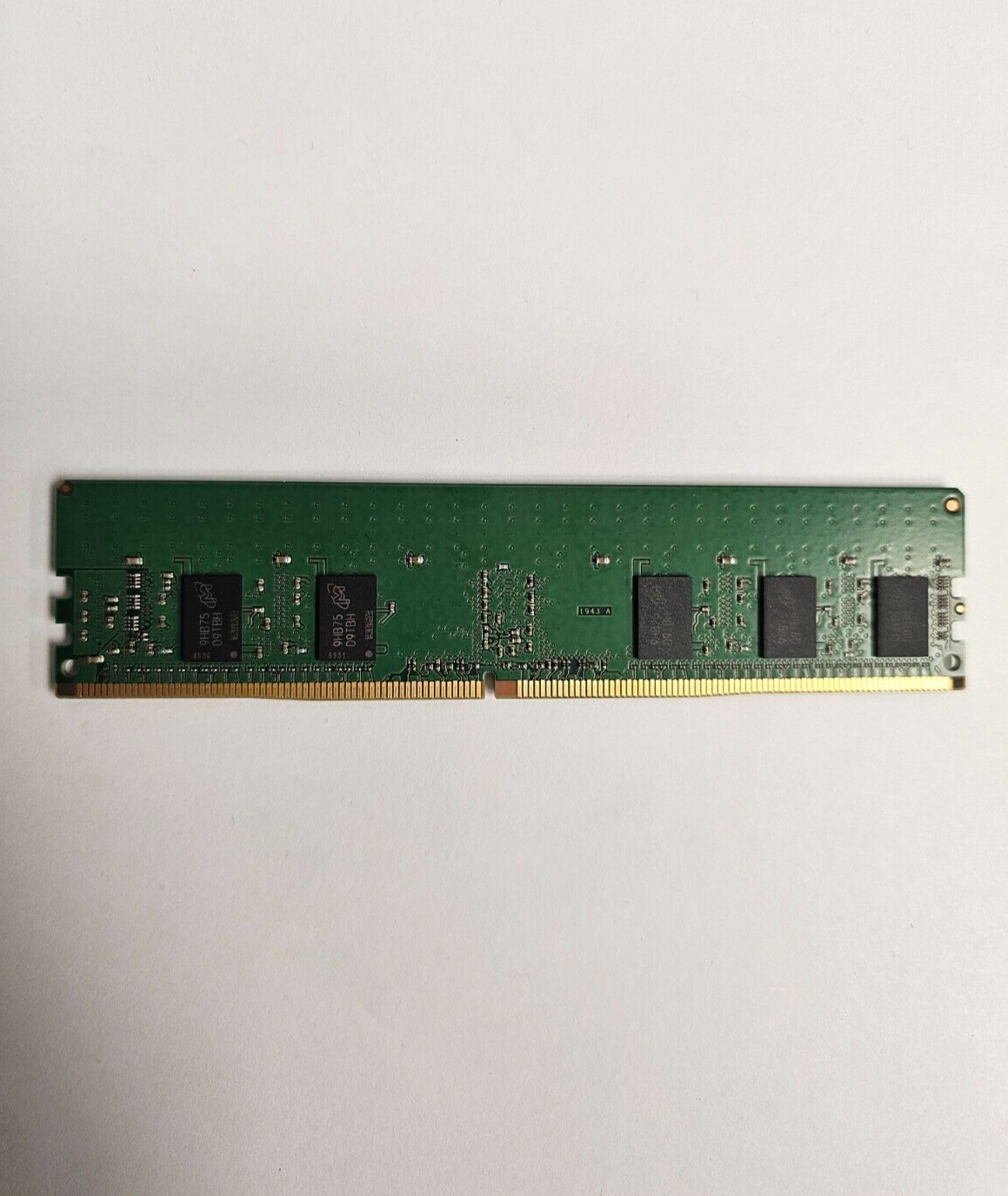

1x8Gb Memory Upgrade For N9K Switches FX2

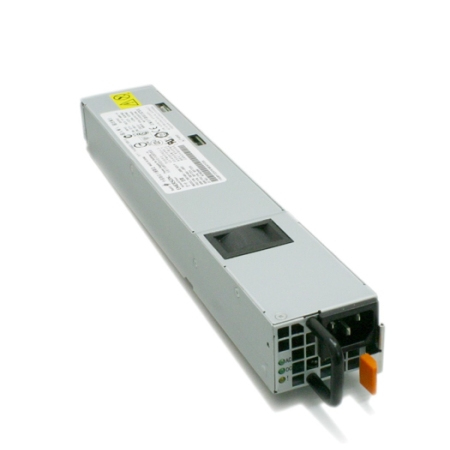

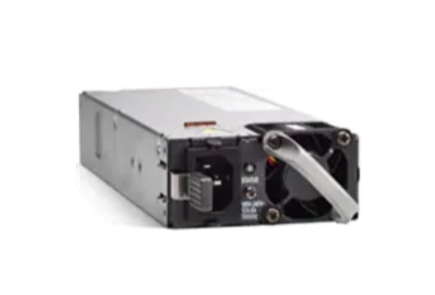

950W, AC 90 to 264 VAC, 47 to 63 Hz, 94% efficiency

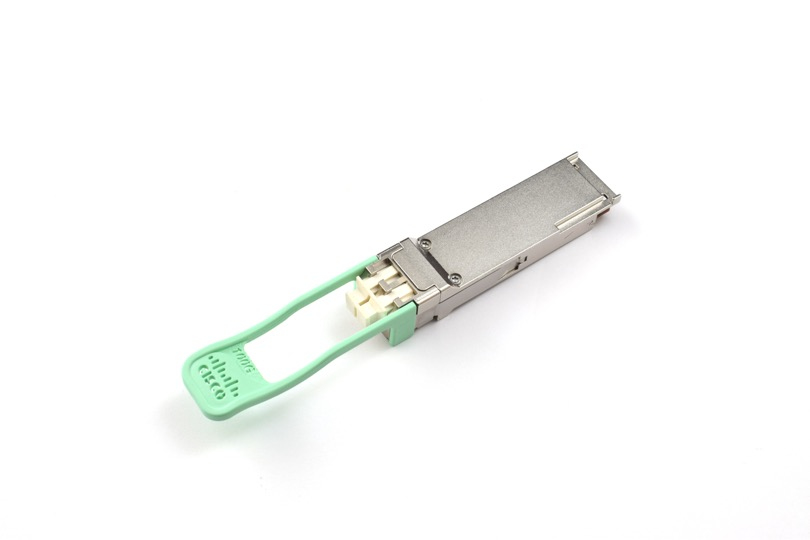

The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor. Cisco QSFP-100G-FR-SThe Cisco QSFP-100G-FR-S Module supports link lengths of up to 2 km over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4 modulation and FEC. QSFP-100G-FR-S can also be used in applications meant for IEEE 100GBASE-DR, such as interoperability with IEEE 400GBASE-DR4 via fiber break-out cables.

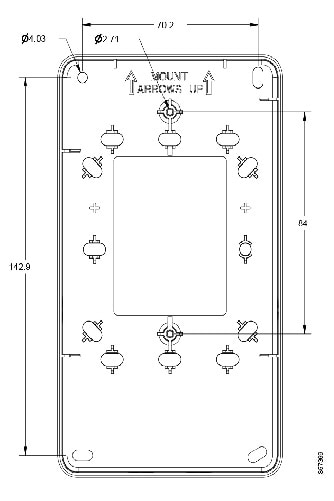

Wall-Mount Spacer KIT

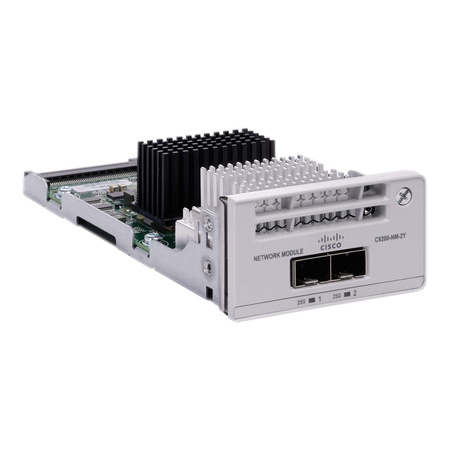

Catalyst 9200 2 x 25 GE Network Module, spare

Provides power and connectivityAllows delivery of both data and power for the Meraki MV smart camera over a single Ethernet cable allowing for simple installation.

This module has eight Multigigabit Ethernet (mGig) module slots.
