NETGEAR ® Smart Managed Plus Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Smart Managed Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.

PRO AV RESOURCESAll the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.

NETGEAR 8-port 2.5G Multi-Gigabit Ethernet Plus SwitchMULTI-GIGABIT ETHERNET8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth eachNON-BLOCKING SWITCHING40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devicesAUTO-NEGOTIATIONAutomatic connection at the highest common speed between the switch and an end deviceFANLESS DESIGNSilent operation makes this switch perfect for noise-sensitive environmentsVERSITILE MOUNTING OPTIONSInstall your switch on your desktop or mount it to your wall with the hardware provided in the boxENERGY EFFICIENTEnergy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

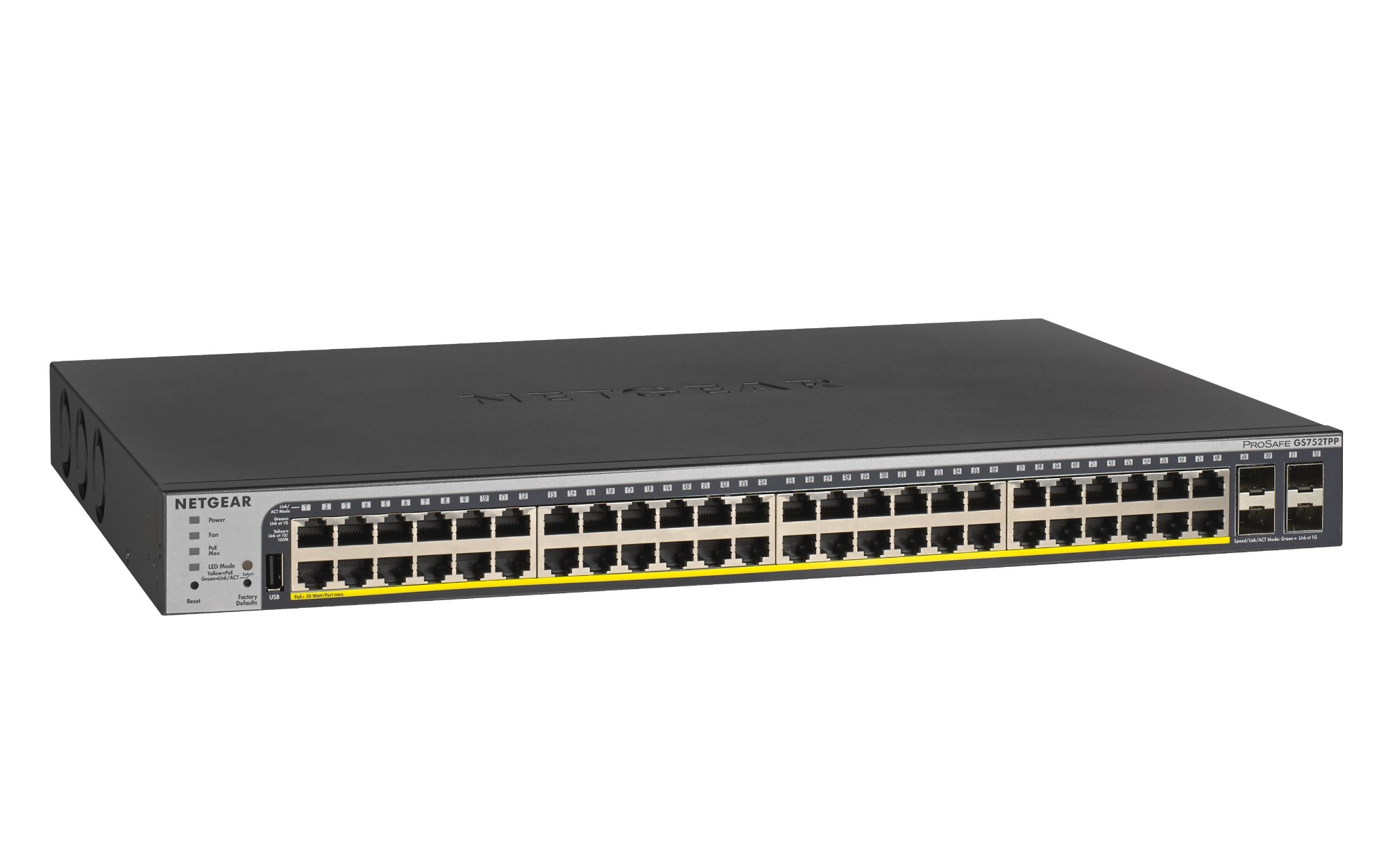

All ports PoE+ with up to 760W PoE budget – Select your new network engine!As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA

Expanding Wired Connectivity for SOHO NetworksNETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.

Instant Connectivity and Reliable PerformanceThe NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS524UP joins the series and offers 16 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 480W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.The GS524UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.Powerful Ultra60 PoE++Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS524UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power. The GS524UP includes 16 PoE++ ports that can deliver up to 60W of power per port.PoE ModeYour business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS524UP solves this problem by providing power to both pre-bt and bt standard devices.- GS524UP by default uses 802.3bt standard, only compatible for bt standard devices- 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power- Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power- If the GS524UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (

Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.M4250 Support for Audio Video Bridging (AVB)One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.

16-Port High-Power PoE+ Gigabit Ethernet Plus Switch (231W) with 1 SFP PortThe NETGEAR 16-Port High-Power PoE+ Gigabit Ethernet Plus Switch delivers essential business networking features and powers PoE+ devices like VoIP phones IP cameras and more.New and improved Plus switchesAlong with the already great Plus features GS308EP enhances your business networking experience even more with exciting new features: advanced PoE controls with uninterrupted PoE and more business-friendly GUI simplified VLAN and QoS set-up and multi-language support.Meet Your Business NeedsThis Plus Switch is packed with network-optimizing features including VLANs QoS and IGMP Snooping at an affordable price.Power for PoE+ DevicesDeliver power and network connectivity to all your PoE+ devices including wireless access points door locks and many more.Easy ManagementSetup is simple –just plug and play. Configure your network using a user-friendly web GUI.Features:• Gigabit Ethernet16 ports provide up to 1000 Mbps of dedicated non-blocking bandwidth each.• PoE+ Support15 PoE+ ports provide a total of 62W of power so you can power and connect your devices with a single wire.• Advanced PoE ControlsManage PoE prioritization PoE power limit per port and more for simple control over all PoE-powered devices.• Non-Blocking Switching10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.• Fanless DesignSilent operation makes this switch perfect for noise-sensitive environments.• Versatile Mounting OptionsInstall your switch on your desktop or mount it to your wall or rack with the hardware provided in the box.FeaturesNumber of Ports16 PoEYes Ports Front/Rear16/0 Switching Capacity32 GbpsDimensions (L x W x H)102 x 286 x 27 mm

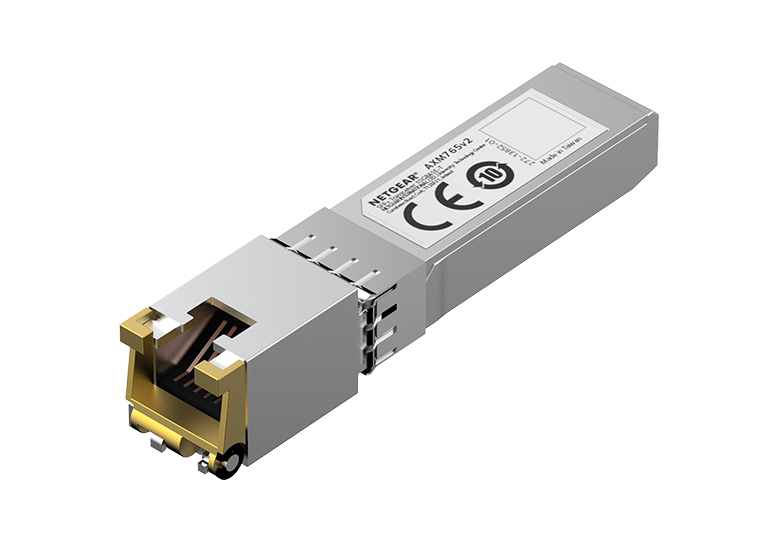

SFP+ Transceiver converts SFP+ ports to copper 10GBase-T up to 80 metersNETGEAR? 10GBASE-T SFP+ Transceiver (AXM765v2) delivers 10G copper connectivity with CAT6a or CAT7 cabling up to 80 meters (262.5 feet) when inserted in a switch SFP+ fiber module slot. The AXM765v2 fits into SFP+ or SFP28 interfaces of M4250 M4300 and M4500 Managed Switches.Features:• 10GBASE-T copper connectivity up to 80 m (262.5 feet) distance• Fits into SFP+ interfaces of M4250 M4300 and M4500 Managed Switches• CAT6a or CAT7 wiring required for 10GBASE-T up to 80 meters (262.5 feet)• RJ45 connector• Complaint to SFF 8431 4.1 SFP+ Multisource Agreement (MSA) and 10GBASE-T as specified in IEEE 802.3i• NETGEAR Limited 5-year Hardware WarrantyFeaturesWarrantyNETGEAR Limited 5-year Hardware Warranty
